What is
Stranding?
Cables for fixed installation in wire channels or long walls or long sealings of rooms need to be bendable. Cores for moveable electric devices and units need to be flexible. The required processability is achieved by using stranded conductors inside the cable which are produced on stranding machines.
Read More?Double Twist Bunchers
|
Operations : Bunching, Stranding, Tape Application ? |
| Reel Size [mm]? | Max. Rpm? | Max. Twist? | Max. Line Speed [m/min]? | Optional Equipments? | Safety Regulation? | System Voltage? |
|---|---|---|---|---|---|---|
| 630 | 2500 | 5000 | 200 | Automatic Lubrication System? - Reel Measuring System? - Vibration Detecting System? |
CE | 380V 50Hz 460V 60Hz |
| 800 | 2000 | 4000 | ||||
| 1000 | 1000 | 2000 | ||||
| 1250 | 900 | 1800 | ||||
| 1600 | 400 | 800 | ||||
| 2000 | 400 | 800 |
Single Twist Bunchers
|
Operations : Bunching, Stranding, Tape Application ? |
| Reel Diameter [mm] | Max. Rpm | Max. Line Speed [m/min] | Optional Equipments | Safety Regulation | System Voltage |
|---|---|---|---|---|---|
| 630 | 1000 | 150 | Automatic Lubrication System - Reel Recognition System |
CE | 380V 50Hz 460V 60Hz |
| 800 | 750 | ||||
| 1000 | 400 | ||||
| 1250 | 300 | ||||
| 1600 | 250 | ||||
| 2000 | 150 |
Rigid Stranders
|
Operations : Stranding, Armoring, Screening ? |
| 400 | 500 | 630 | Max. Line Speed [m/min] | InletWire Diameter [mm] | Optional Equipments | Safety Regulation | |||
|---|---|---|---|---|---|---|---|---|---|
| Reel Quantity | Max. Rpm (Cu/Al) | Reel Quantity | Max. Rpm (Cu/Al) | Reel Quantity | Max. Rpm (Cu/Al) | ||||
| 6 | 300 / 350 | 6 | 240 / 300 | 6 | 200 / 250 | 50 | Copper 1,5-3,6 Aluminum 1,75-5,0 |
Automatic Reel Loading System - Sector Shaping Attachments |
CE |
| 12 | 250 / 270 | 12 | 200 / 150 | 12 | 180 / 220 | ||||
| 18 | 200 /220 | 18 | 160 / 200 | 18 | 140 / 170 | ||||
| 24 | 180 / 200 | 24 | 125 / 150 | 24 | 110 / 130 | ||||
| 30 | 140 / 160 | 30 | 100 / 120 | 30 | 90 / 100 | ||||
| 36 | 110 / 130 | 36 | 80 / 100 | 36 | 70 / 80 | ||||

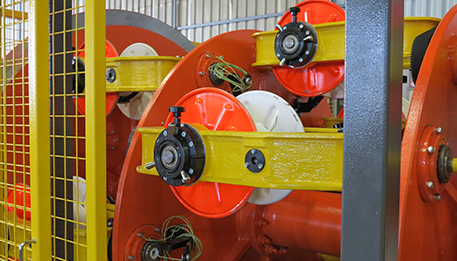

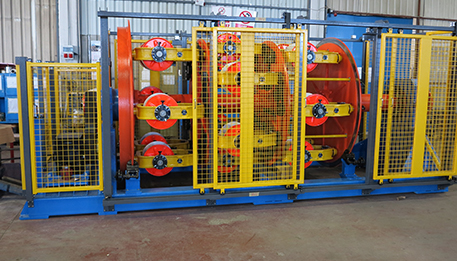

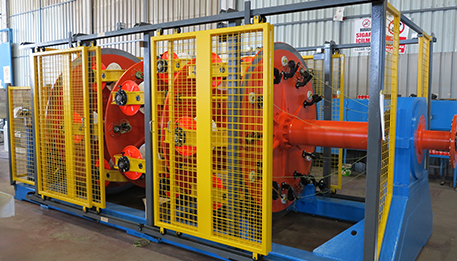

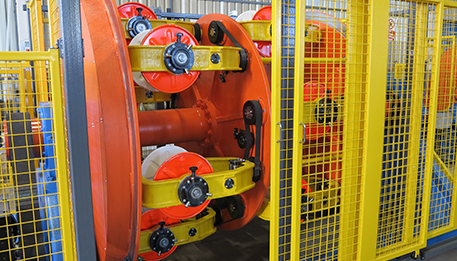

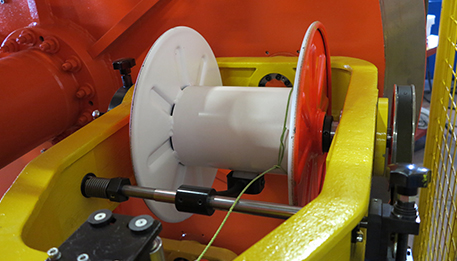

Planetary Stranders
|
Operations : Stranding, Armoring, Screening ? |
|
Sectors : Aerospace, Control Cables, Infrastructure, Oil&Gas, Renewable Energy ? |
| Reel Diameter [mm] | Max. Rpm | Optional Equipments | Safety Regulation | System Voltage |
|---|---|---|---|---|
| 500 to 1600 | 150 | Automatic Lubrication System - Pneaumatic Brake System - Electromagnetic Brake System - Mechanical Brake System - Load Cell Tension Adusting System |
CE | 380V 50Hz 400V 60Hz |
Skip (Bow) Stranders
|
Operations : Stranding ? |
|
Applications: Copper and Aluminum Wire, MV&HV Cables, Wire and Cable Stranding ? |
| Reel Diameter [mm] | Max. Rpm | Reel Quantity | Max. Diameter [mm] | Optional Equipments | Safety Regulation | System Voltage |
|---|---|---|---|---|---|---|
| 630 to 1600 | 1000 - 300 | 1+3 / 1+6 | 60 | Automatic Lubrication System - Pneaumatic Brake System - Electromagnetic Brake System - Mechanical Brake System |
CE | 380V 50Hz 400V 60Hz |
Rotating Payoffs - Take Ups
|
Operations : Stranding, Armoring, Screening, Laying Up ? |
|
Sectors : Control Cables, Infrastructure, Renewable Energy ? |
| Reel Diameter [mm] | Reel Weight [Ton] | Max. Rpm | Max. Line Speed [m/min] | Optional Equipments | Safety Regulation | System Voltage |
|---|---|---|---|---|---|---|
| 1250 | 3 | 180 | 100 | Loding Platform - Sector Stranding Attachments |
CE | 380V 50Hz 400V 60Hz |
| 1600 | 6 | 150 | ||||
| 2000 | 8 | 120 | ||||
| 2240 | 12 | 90 | ||||
| 2600 | 20 | 75 | ||||
| 3000 | 25 | 50 | ||||
| 3200 | 30 | 50 |
